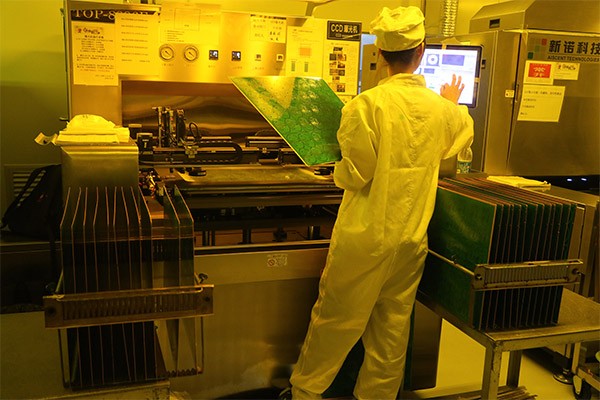

PCB circuit board exposure includes circuit exposure and solder resist exposure. The function is to solidify the irradiated local area through ultraviolet irradiation, and then develop it to form circuit pattern or solder resist pattern.
